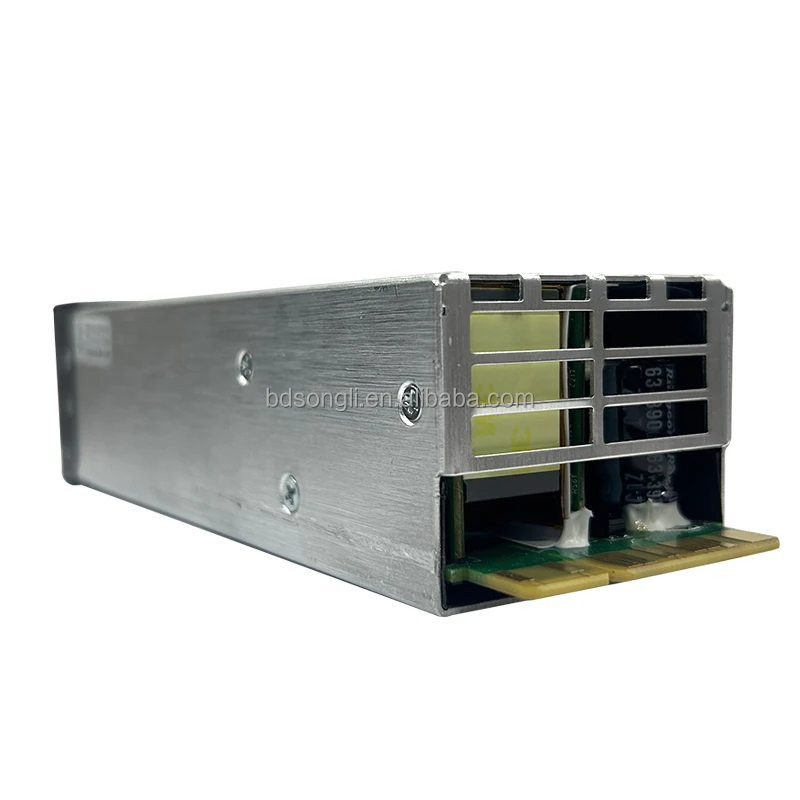

Vertiv R48-1000E3 48V high-efficiency Telecom Power Rectifier Module

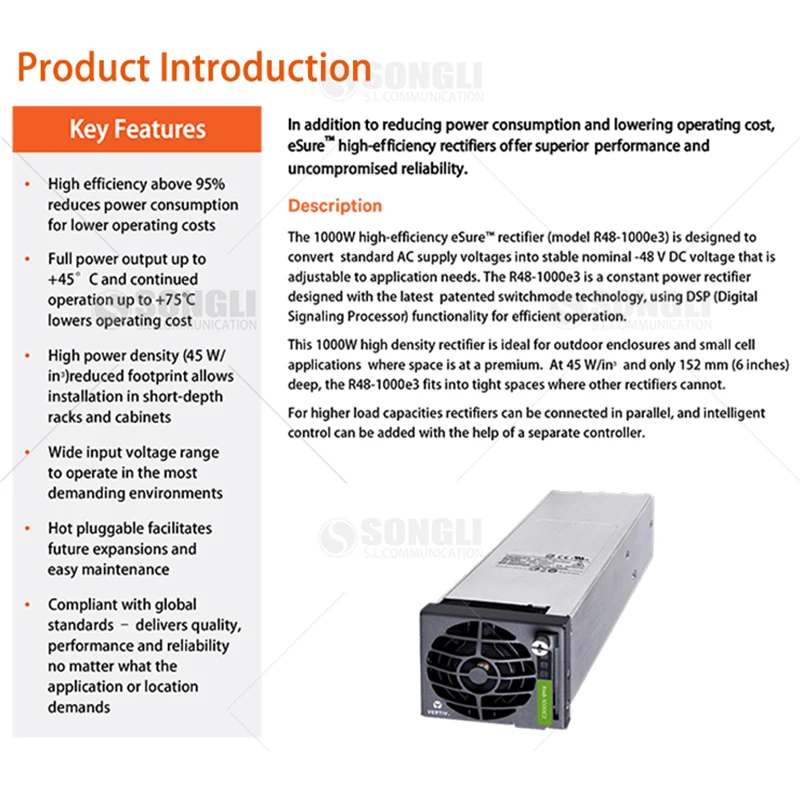

This 1000W high density rectifier is ideal for outdoor enclosures and small cell applications where space is at a premium. At 45 W/in³ and only 152 mm (6 inches) deep, the R48-1000e3 fits into tight spaces where other rectifiers cannot.

For higher load capacities rectifiers can be connected in parallel, and intelligentcontrol can be added with the help of a separate controller.

Key Features:

1. High efficiency above 95% reduces power consumption for lower operating costs.
2. Full power output up to +45°C and continued operation up to +75°C lowers operating cost.
3. High power density (45 W/ in)reduced footprint allows installation in short-depth racks and cabinets.
4. Wide input voltage range to operate in the most demanding environments.
5. Hot pluggable facilitates future expansions and easy maintenance.
6. Compliant with global standards – delivers quality, performance and reliability no matter what the application or location demands.

Application：

• Communication base station.
• Communication power cabinet
• Edge computing
• Industrial Control
